As a car owner, it's important to know about the different types of fuses that are used in your vehicle. A fuse is a safety device that protects the electrical system of your car by breaking the circuit if there is an overload. In this blog, we will discuss the different types of automotive fuses and how to correctly select the fuse that suits your car.
There are primarily three types of automotive fuses: blade, glass tube, and ceramic. Let's take a look at each of these in detail.
There are several types of fuses that can be used in vehicles. Each type has its own unique characteristics and is designed for specific applications.
The most common types are:
♦ Glass tube fuses
♦ Ceramic cartridge fuses
♦ Blade fuses
♦ SMD (Surface-Mount Device) fuses
♦ Cylindrical fuses

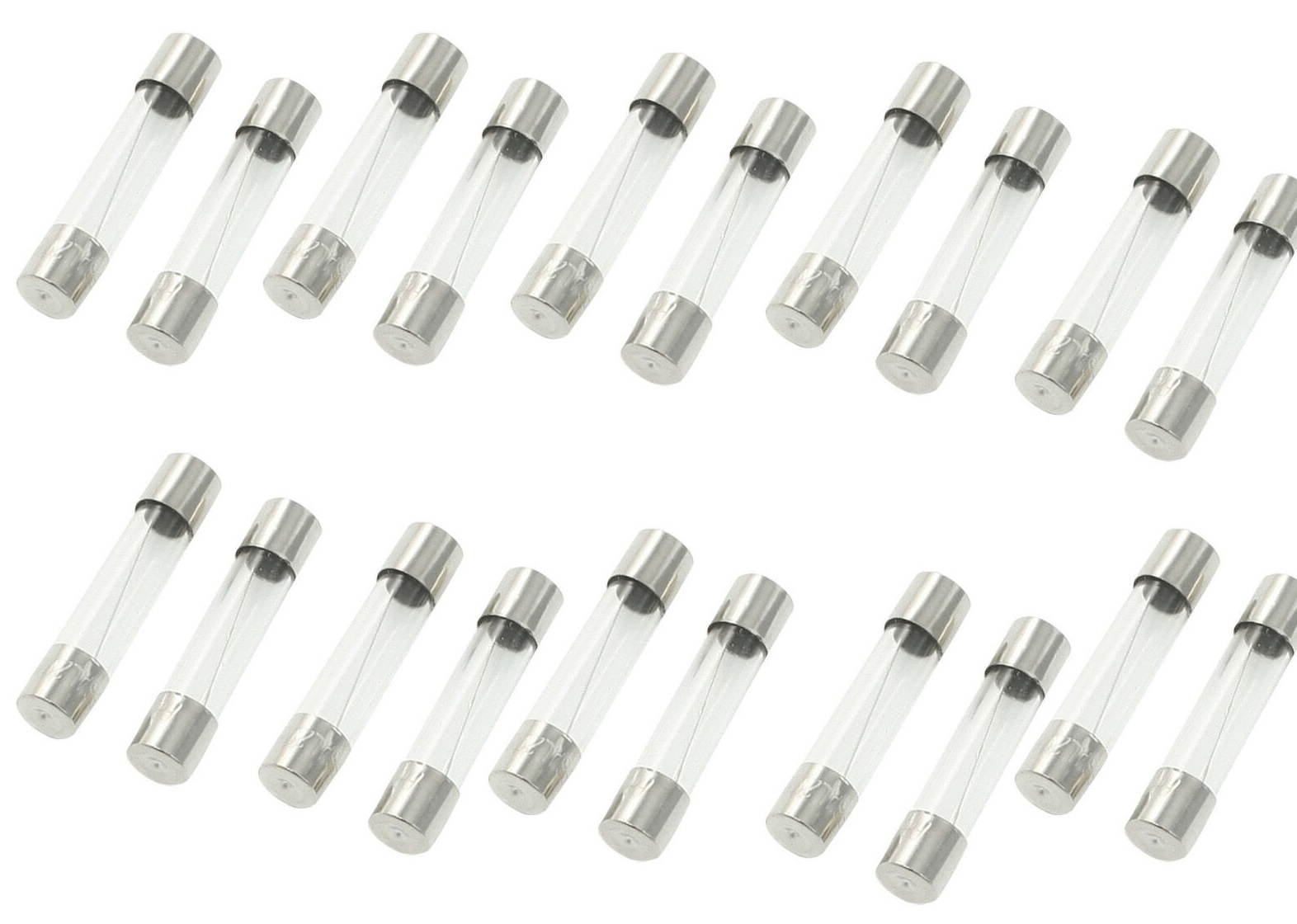

Glass tube fuses are a traditional type of fuse that was popular in older vehicles. They are made of glass and have a filament that burns out when there is an overload. Glass tube fuses come in different sizes and are usually rated between 5 and 30 amps. They are fragile and can break easily, making them difficult to replace.
Ceramic fuses are the most durable type of fuses. They are made of ceramic and come in different sizes, ranging from 5 to 60 amps. Ceramic fuses are used in high-performance vehicles, where there is a higher risk of overloading. They can withstand high temperatures and are more resistant to vibration and shock.
Blade Fuses, also known as box fuses, are commonly used in vehicles and are designed with blade-shaped terminals that fit into a fuse box. These fuses can handle voltage ratings up to 250 volts and current ratings up to 200 amps. They are used in a variety of automotive electrical systems, including lights, power windows, and sound systems. Littelfuse blade fuses include: MICRO2®, MICRO3®, MINI®, LP MINI®, ATO®, MAXI, MCASE+®, JCASE® and LP JCASE®.
JCASE series fuses are specifically designed for automotive applications and have a current rating range of 20 to 60 amps. They also have a unique cartridge shape that helps to prevent arcing and increases durability. The JCASE fuses are often used in high-current circuits such as power windows, power seats, and air conditioning systems. They are compatible with standard fuse blocks and are a direct replacement for the more traditional blade fuses.
The JCASE fuses are often used in high-current circuits such as power windows, power seats, and air conditioning systems. They are compatible with standard fuse blocks and are a direct replacement for the more traditional blade fuses.

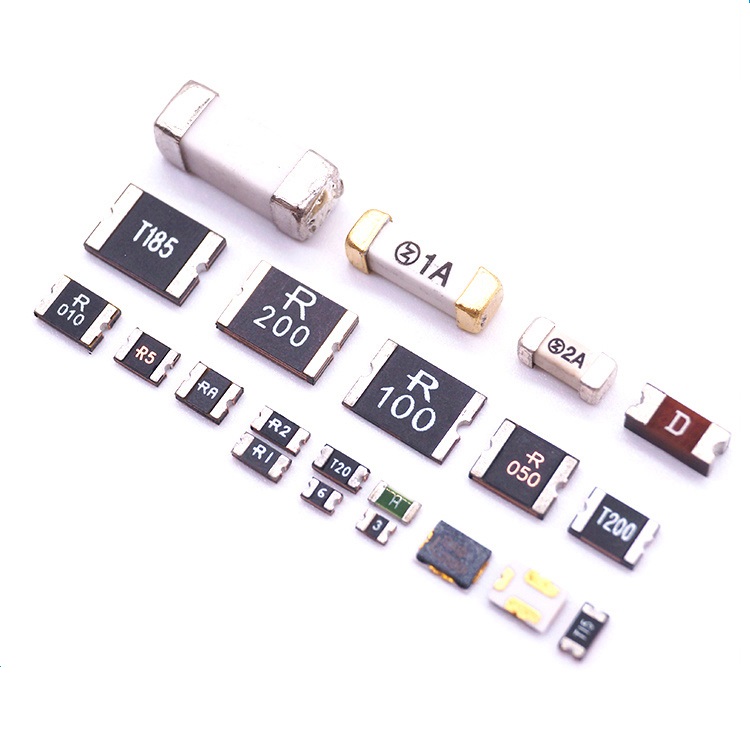

SMD (Surface-Mount Device) Fuses are miniature fuses that are commonly used in electronics, such as mobile phones and computers. These types of fuses have current ratings of up to 6.3 amps and voltage ratings of up to 250 volts.
Now that you know about the different types of fuses, let's discuss how to select the right fuse for your car. It is important to ensure the safety of your car's electrical system. Here are the steps to follow when selecting the right fuse:
Step 1: Check the Owner's Manual Your car's owner's manual will have information about the type of fuses that are used in your vehicle. It will also have a diagram that shows the location of each fuse.
Step 2: Look at the Amp Rating Each fuse has an amp rating, which is the maximum amount of current that it can handle before breaking the circuit. It's important to choose a fuse with the correct amp rating to prevent damage to your car's electrical system. Using a fuse with a higher amp rating than required can be dangerous as it may not break the circuit in case of an overload.
Step 3: Check the Size and Type Make sure that you choose a fuse that is the same size and type as the one that needs to be replaced. Using a fuse of the wrong size or type can cause damage to your car's electrical system.
In conclusion, there are many different types of fuses available for use in vehicles. Whether you need a basic glass tube fuse or a more complex cylindrical fuse, it is important to select the right type of fuse for your vehicle’s electrical system. By understanding the different types of fuses available and their unique characteristics, you can make an informed decision and ensure the safety of your vehicle and its occupants.
