157-01100 Fir Tree Parts FT6 Cable Ties brand HellermannTyton for Automotive
Basic Data
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Application Tool | EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT |
| Color | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| PART DESCRIPTION | T50SDP6-PA66HIRHS-BK |
| Product Family | Fir Tree Parts FT6 |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece fixing tie 170x5.1 mm, with fir tree, with Disc, for round holes, high impact modified, heat stabilised, black |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
Eight Advantages
● We choose OEM, HellermannTyton and other high-quality brands
● Acid and corrosion resistance
● Good insulation
● Superior anti-aging performance
● Strong bearing capacity
● Easy to use, fast binding
● Self-locking fastening
● Passed the certification of ISO14001, ISO9001, IATF16949
What are cable ties used for ？
The wire harness is the "nervous system" of automobiles. The design of fixing automobile harnesses is a very important item in the design of harness layout, and the tie is a very important and most used fastener.

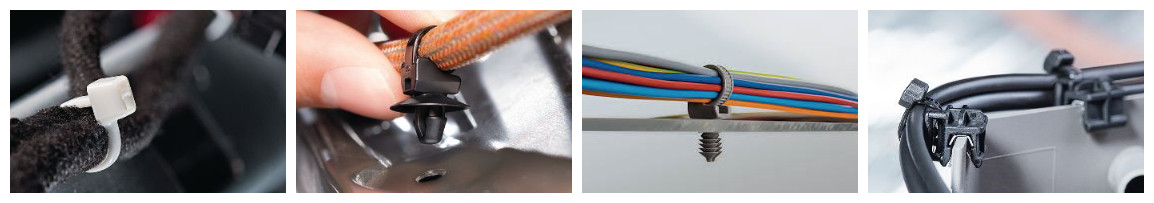

The main function of a harness tie is to integrate, fix and arrange the harness. Although the harness tie products are small, their importance cannot be ignored. They will fasten the harness together and firmly fix it in the metal plate hole, bolt, steel plate and other positions to prevent the harness from being damaged by scattering, displacement, vibration, or wear with other parts, which will affect the driving safety.
The material is mainly polyamide (PA66). The quality of the harness tie is not good, and it is loose or broken during use. Firstly, the harness will be wound, which will affect the appearance and product image; If it is serious, it will lead to a circuit short circuit and fire, resulting in a driving accident.
We have a variety of cable ties and accept customization
✔ Standard ties for wiring, binding and fixing
Connect the bundled cables, wires, pipes and hoses directly to the edge of the panel or frame. There are two types: integrated type and split type.
✔ Tie with fixing element

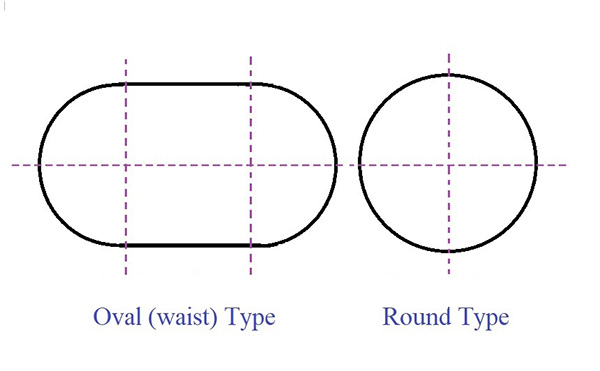

According to applicable sheet metal holes and other positions, it is divided into:
1. Applicable round hole type
2. Applicable waist hole (oval hole) type
The functions and physical properties of round and oval fixing ties are similar, but the difference is that the mounting holes are different
3. Applicable bolt type
4. Applicable steel plate type
How to store the tie correctly?
☞ The temperature is about 23 ℃, and the humidity is more than 50%
☞ Store the ties away from direct heat sources.
☞ Do not expose the tie to direct sunlight!
☞ Always store the ties in a sealed plastic bag. Once opened, the tie should be used as soon as possible. If you fail to use up the quantity of a package in a short time, be sure to seal the package.
