EF9523 series PET Cloth Tape for cable protection

Description: EF9523 series Automotive PET Cloth Tape

Material: Polyester Fabric Cloth

Thickness: 150μm -270μm

Temperature resistance: 105℃/125℃/150℃

Color: Black

Width: 19mm, 32mm or customize

Length: 20m, 25m

Core: 38mm


Reference No.: EF9523

  • :
  • Temperature :
    • 105℃
    • 125℃
    • 150℃
    Width :
    • 19mm
    • 32mm
    • Customize

    Product Detail

    About US

    Product Tags

    Basic Information

    Name: PET Cloth Tape/ Polyester Fabric Tape

    Material: Polyester Fabric Cloth

    Thickness: 150μm -270μm

    Temperature resistance: 105℃ / 125℃ / 150℃

    Color: Black

    Width: 19mm, 32mm or customize

    Length: 20m, 25m

    Core: 38mm

    Lead time: 3-15 days

    EF9523 series Cloth Tapes are composed of high-quality polyester fabric cloth and strong pressure-sensitive adhesive. For detailed specification see the below list:

    Product Name Product Construction Performance Characteristics Application Recommendation
    Total Thickness
    (μm)
    Carrier Adhesive Carrier Thickness
    (μm)
    Tensile Strength
    (N/cm)
    Elongation
    (%)
    Adhesive Strength
    To Steel
    (N/cm)
    Adhesive Strength
    To Backing
    (N/cm)
    Abrasion Class Flame Class Comply with
    RoHS & REACH
    Maximum Continuous Operating Temperature
    (℃)
    EF9523 270 PET
    Cloth
    Acrylic 235 240 48 2.5 3 C B Y 150 Wire Harness Wrapping
    EF9523D 270 PET
    Cloth
    Acrylic 225 245 48 2.5 3 D B Y 150
    EF9523A 170 PET
    Cloth
    Natural Rubber 130 85 25 3 3 B B Y 125
    EF9523E 170 PET
    Cloth
    Synthetic Rubber 130 90 24 3 2.5 A B Y 105
    EF9523C 150 PET
    Cloth
    Synthetic Rubber 125 80 26 3 2.5 A B Y 105



    Test Standard

    The temperature resistance and Abrasive resistance meet the requirement of LV312

    Property Unit Test Standard
    Total thickness μm ASTM-D-1000
    Tensile strength N/cm ASTM-D-1000
    Elongation at break % ASTM-D-1000
    180° peel strength to steel N/cm ASTM-D-1000
    Unwind force N/cm ASTM-D-1000
    Temperature resistance °C VW60360(LV312)
    Abrasive resistance Times VW60360(LV312)

    Recommended Uses

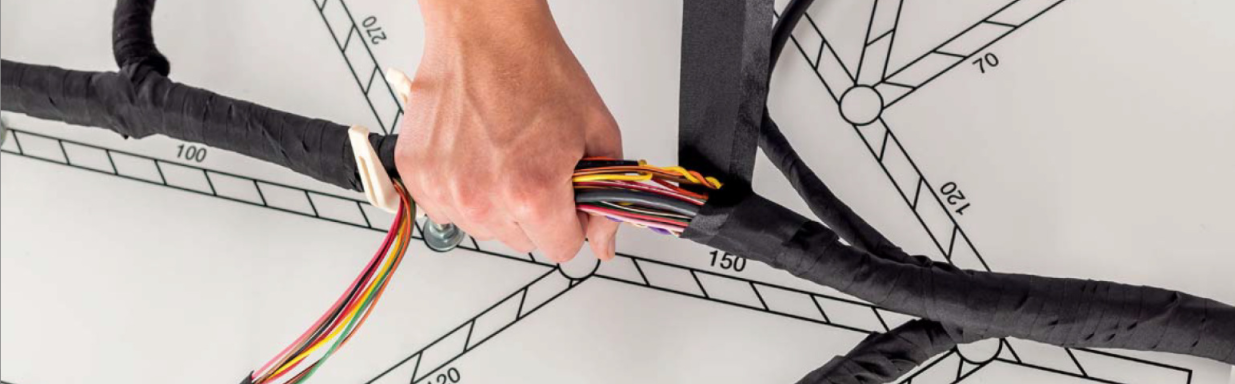

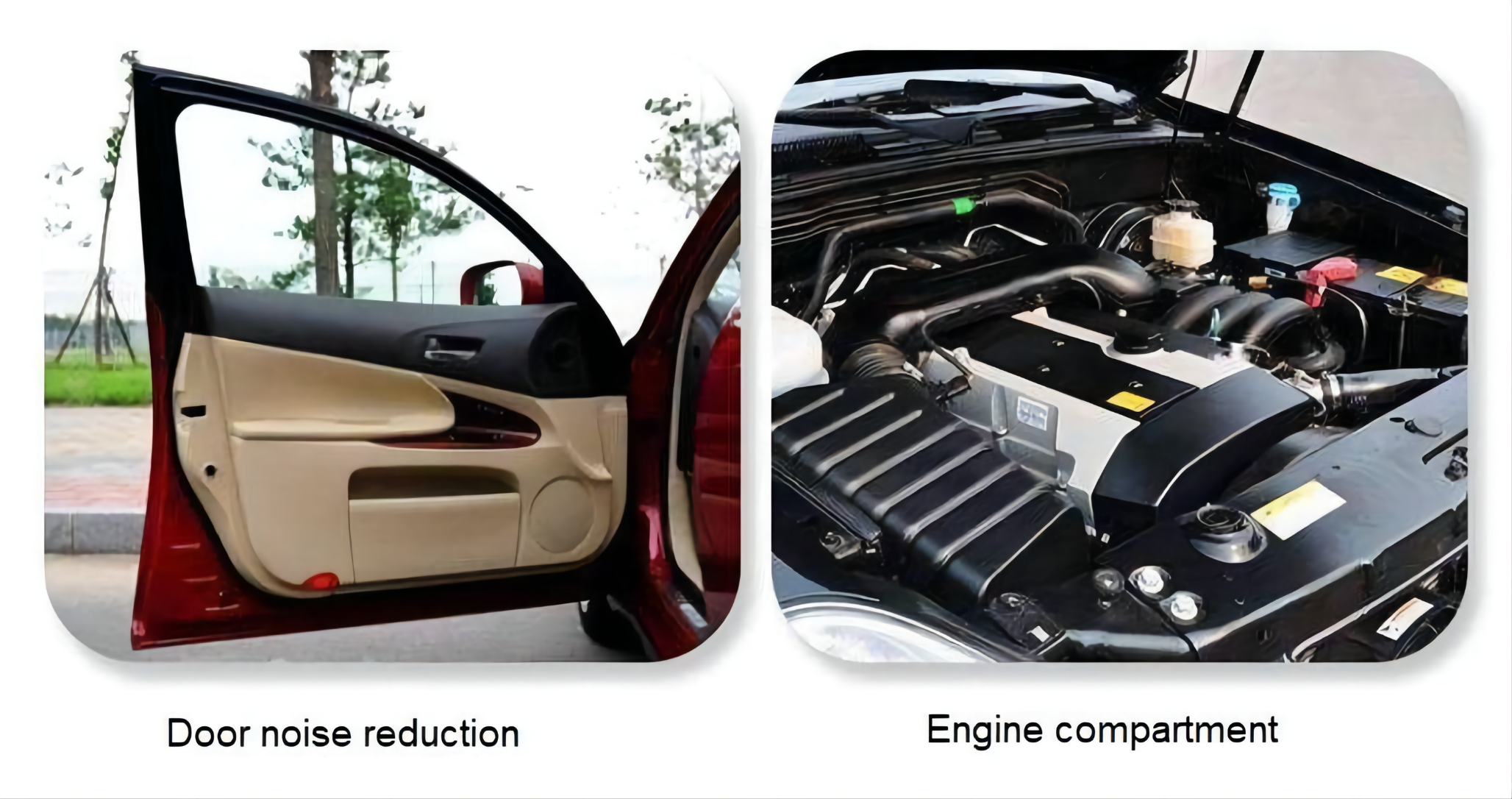

    It is used for automobile wire harness wrapping. It is an ideal product for the high-temperature-resistant harness in the engine compartment. Through overlapping lap and spiral winding, you can get a smooth, durable and flexible car harness.
    LJK

    Ten Advantages

      High temperature polyester fabric harnessing tape from -40 °C to +150 °C

    ✔  Temperature and humidity resistance tested according to LV312

    ✔  High adhesion

    ✔  Very good resistance against abrasion

    ✔  Provides long term reliability under varying and extreme environmental conditions

    ✔  Excellent against resistance, and resistant to rotting in wet or damp conditions.

    ✔  Extremely soft and antifouling surface

      Flexible and easy to handle

    ✔  Tearable by hands

    ✔  Free of critical substances
