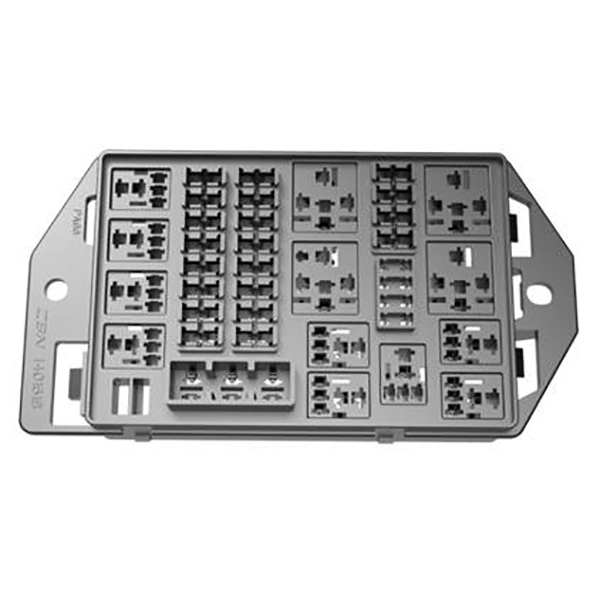

BX-1401618 16way car fuse box used in Engine Compartment
It is in the Engine compartment of Wuling Glory. It also could be used in similar mini buses.
What does a car fuse box do?
An automotive fuse box includes an upper cover, lower cover, and fuse block with elements such as fuses, relays, and diodes. Some of them have performance characteristics such as waterproof automotive fuse boxes, fireproof automotive fuse boxes, and high-temperature resistance automotive fuse boxes.
The car fuse box is an electrical hub used to provide vehicle power distribution and loop protection.
The fuse box can simplify the installation of wire harnesses and the assembly process of the whole vehicle, improve the overall quality level of the system, reduce costs and reduce clutter.
Where are the automotive fuse boxes installed?
The installation position can be divided into three types：

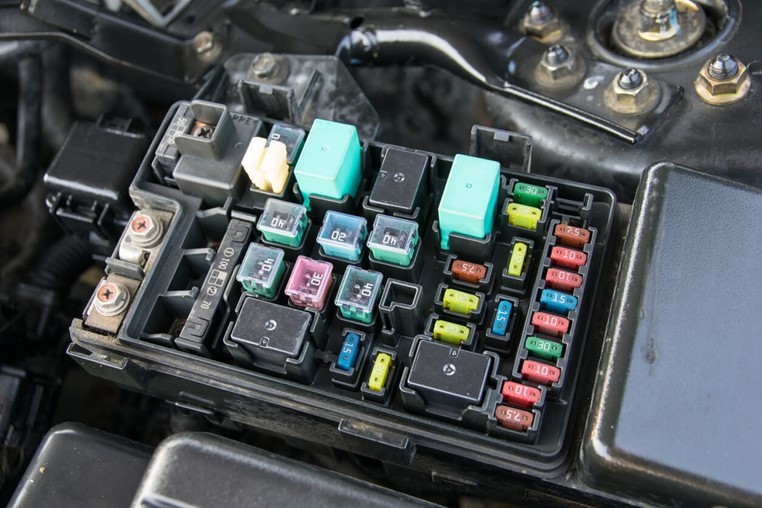

1.UEC (Underhood Electrical Centre Fuse Box, also called Engine Bay Fuse box and known as EJB in Europe)
Location: On the right side of the engine bay
Function: It mainly protects the power supply circuit inside the car and its household appliances, such as onboard computer ECU, headlamp and audio horn, glass water, ABS circuit, etc.
2. IEC (Instrument Electrical Cabin Fuse Box, also known as PJB in Europe)
Location: On the left side below the steering column
Function: It mainly protects cigarette lighters, window glass adjustment, automatic seats and automobile airbags.
3. REC (Rear Electric Fuse Box, also called Boot Fuse box)
Location: under the Boot cover.
Function: It is less used and has more electronic functions to adapt to the current situation, or is added due to the long cable at the rear of the car body)
Routine Test of Fuse Box
|
Test |
Sample Appearance |
Electrical Performance |
Environmental Test |
Mechanical Properties |
|
1 |
Appearance Inspection |
Overload Test |
High-temperature Aging Test |
Mechanical Impact Test |
|
2 |
Temperature and Humidity Test |
Vibration Test |
||
|
3 |
Thermal Shock Test |
Shell Fixing Force Test |
||
|
4 |
Salt Spray Test |
Drop Test |
||
|
5 |
Dust Test |
Plugging Force Test |
||
|
6 |
High-Pressure Water Column Impact Test |

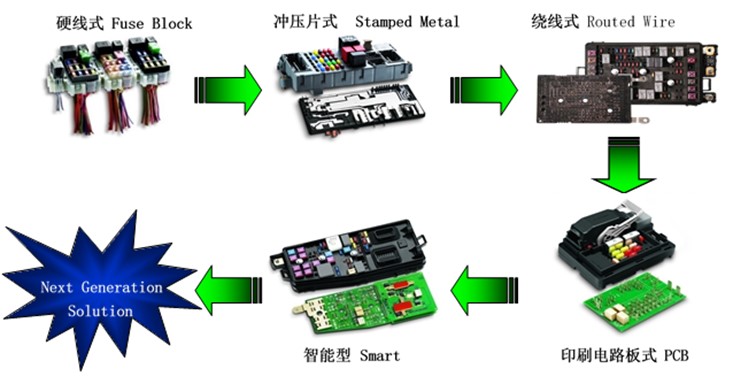

The development process of the fuse box
1. The hard-wired fuse blocks
2. Stamped metal
3. Wound routed wire
4. Printed circuit board / PCB type electric box
(The predecessor of Tesla eFuse, Delphi designed the first generation of electric box for Tesla, and Tesla independently designed eFuse to replace it)
5. Intelligent smart
e.g. smart box eFuse such as MOSFET, eFuse, ESwitch, etc..
